- SKU: CV10-20-0-N-40

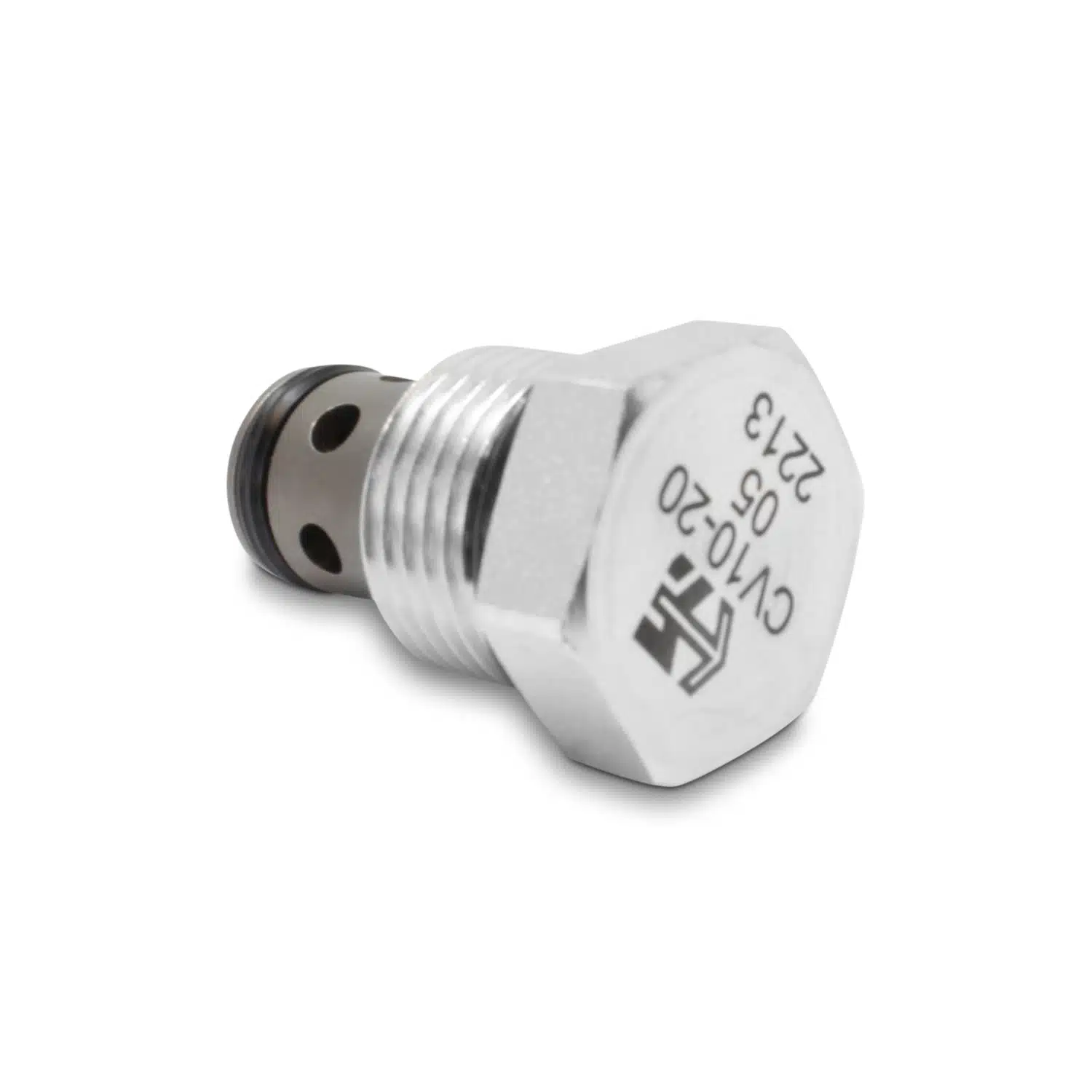

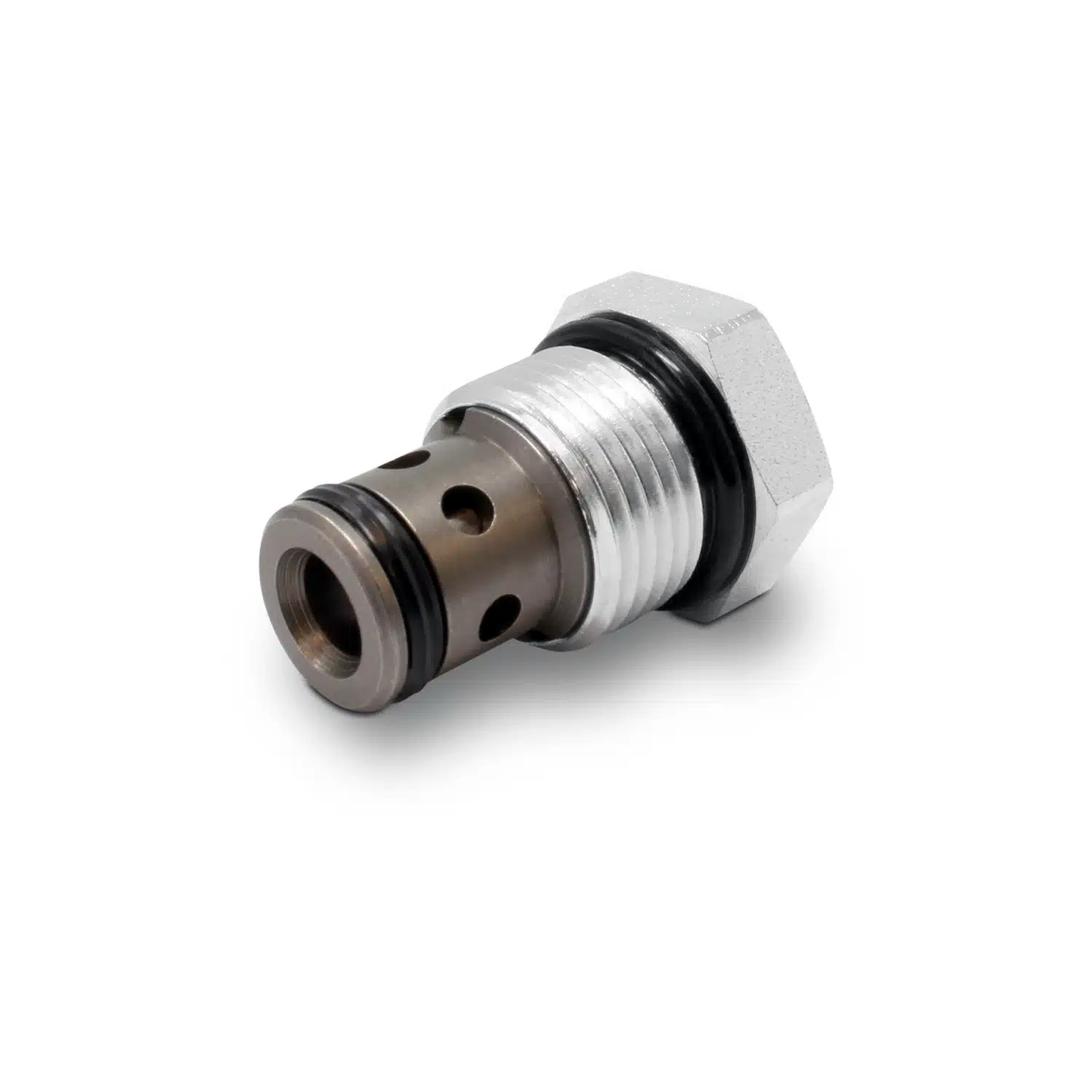

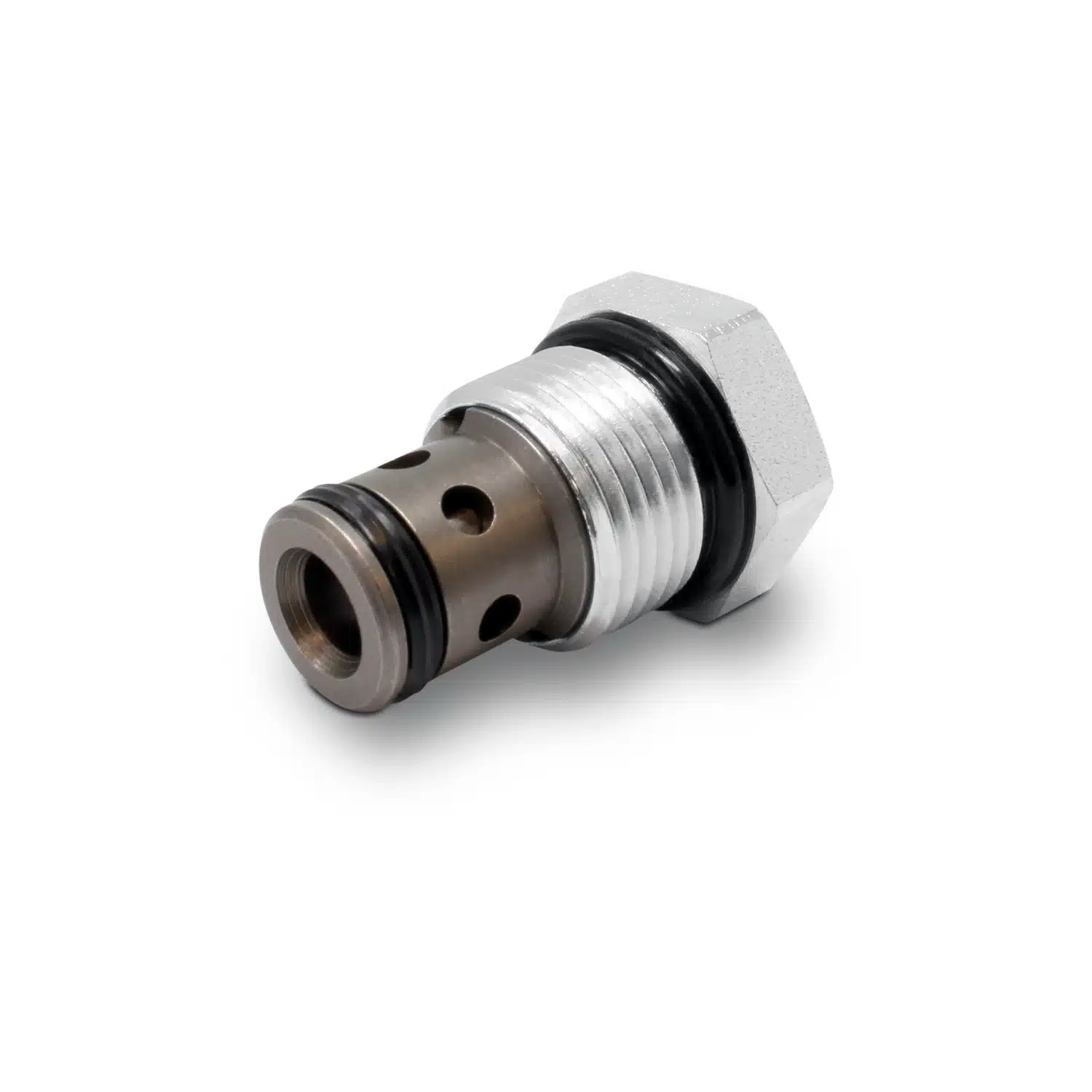

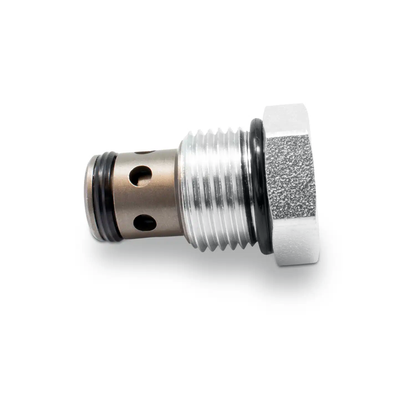

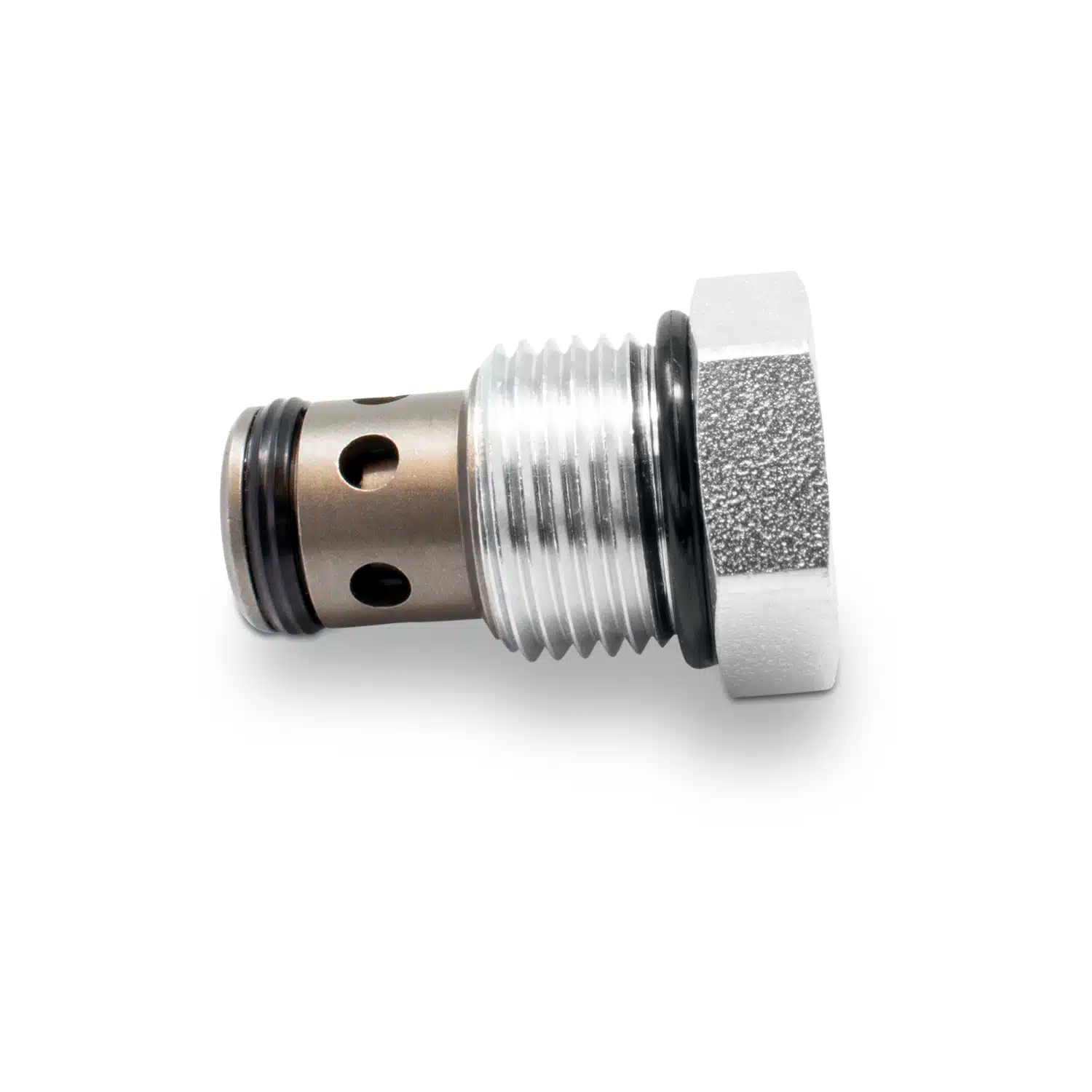

Vanne à tiroir piloté CV10-20-0-N-40 pour Hydraforce
High quality aftermarket parts for reliable performance.
Every purchase is backed by our commitment to product quality.
Impossible de charger la disponibilité du service de retrait
Nom de la pièce : Vanne à élément logique à tiroir piloté
Numéro de pièce : CV10-20-0-N-40
Applications :
Pression nominale : 240 bar (3 500 psi)
Pression d'épreuve : 350 bar (5075 psi)
Débit nominal : 75,8 lpm (20 gpm)
Fuite interne maximale : 2 gouttes/min Remarque : à 240 bar (3 500 psi)
Température du fluide de fonctionnement :
-40 à 100 °C (-40 à 212 °F) Remarque : avec joints Buna N
-26 à 204 °C (-15 à 400 °F) Remarque : avec joints en fluorocarbone
-54 à 107 °C (-65 à 225 °F) Remarque : Avec joints en polyuréthane
-40 à 149 °C (-40 à 300 °F) Remarque : avec joints HNBR
Température de stockage : -40 à 70 °C (-40 à 160 °F)
Température ambiante : -40 à 90 °C (-40 à 194 °F)
Protection contre la corrosion : Gcv10-20 - 960 heures de brouillard salin selon ASTM b117
Fluides : Fluide hydraulique à base minérale ou synthétique avec propriétés lubrifiantes
Plage de viscosité du fluide : 7,4 à 420 cSt
Niveau maximal de contamination opérationnelle : 20/18/14 selon la norme ISO 4406
Spécifications d'installation :
Cavité : VC10-2, cavités 2 voies de taille 10
Couple d'installation de la cartouche : 32,6 à 35,4 Nm (24 à 26 pi-lb)
Couple maximal autorisé : 67,8 Nm (50 pi-lb)
Restriction d'orientation : Aucune
